Description

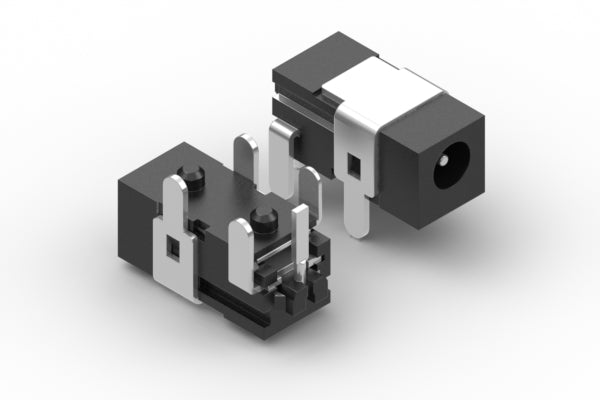

Connector, dc jack, 2.35x0.7xL12 mm, thru hole, 90°, silver plated
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| # of connector contacts | 3 |
| connector center pin Ø | 0.7 mm |
| connector outer Ø | 2.35 mm |
| connector plating | silver |
| connector length | 11.2 mm |
| mounting style | thru hole |
| connector color | black |
| operating temperature | -20~70 °C |
| voltage rating | 48 V |
| current rating | 3.0 A |
| cycle rating | 5000 |
| HTS code | 8536.69.4040 |
| Prop65 | Nickel |
