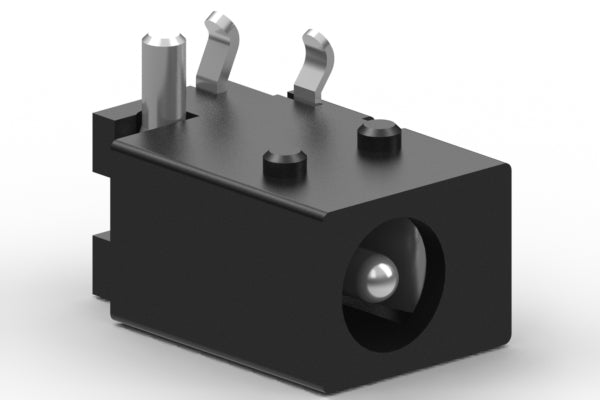

Connector, dc jack, 4.0x1.7xL12.5 mm, thru hole, 90°, board lock, silver plated
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 1.7 mm |
| connector outer Ø | 4.0 mm |
| connector plating | silver |
| connector length | 12.5 mm |
| mounting style | thru hole, board lock |
| connector color | black |
| operating temperature | -25~85 °C |
| voltage rating | 48 V |
| current rating | 4.5 A |
| cycle rating | 5000 |
| features | PCB |
| HTS code | 8536.69.4040 |
| Prop65 | Nickel |
