Description
Description

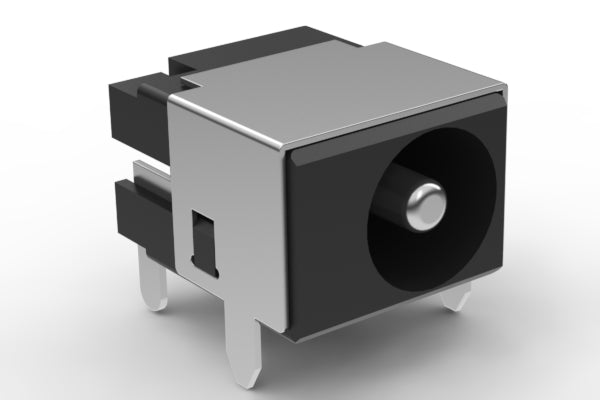

Connector, dc jack 5.5x2.1 mm, PCB mount, 90°, silver plated, thru hole
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| connector outer Ø | 5.5 mm |
| connector plating | silver |
| connector length | 11.5 mm |
| mounting style | thru hole |
| connector color | black |
| operating temperature | -25~85 °C |
| voltage rating | 48 V |
| current rating | 6.0 A |
| cycle rating | 5000 |
| features | PCB |
| HTS code | 8536.69.4040 |
| unit weight | 1.71g |
| Prop65 | Nickel |
