Description
Description

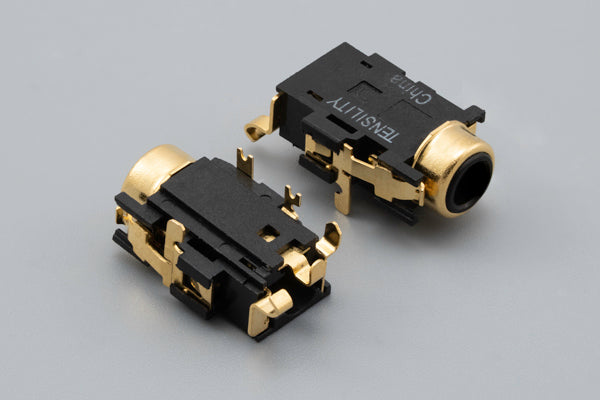

Connector, audio jack, 6C, 3.5xL18.6 mm, thru hole, 90°, board lock, gold plated
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | audio-video |
| connector style | jack |
| connector orientation | 90° |
| # of connector contacts | 6 |
| connector outer Ø | 3.5 mm |
| connector plating | gold |
| connector length | 18.6 mm |
| mounting style | thru hole, board lock |
| connector color | black |
| operating temperature | -10~60 °C |
| voltage rating | 30 V |
| current rating | 0.3 A |
| cycle rating | 5000 |
| features | PCB |
| HTS code | 8536.69.4040 |
| unit weight | 1.42g |
| Prop65 | Nickel |
