Description
Description

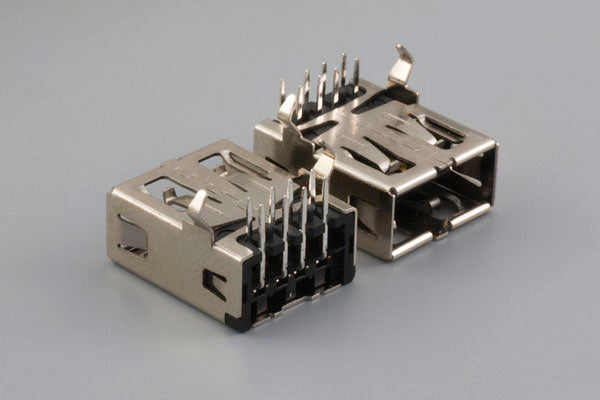

Connector, USB A 2.0 jack, thru hole, 90°, board lock, nickel plated, reversible insertion
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | jack |
| connector orientation | 90° |
| # of connector contacts | 8 |
| connector plating | nickel |
| connector length | 15.5 mm |
| mounting style | thru hole, board lock |
| connector color | black |
| operating temperature | -25~85 °C |
| voltage rating | 30 V |
| current rating | 1.0 A |
| cycle rating | 1500 |
| features | PCB |
| HTS code | 8536.69.4040 |
| unit weight | 3.60g |
| Prop65 | Nickel |
