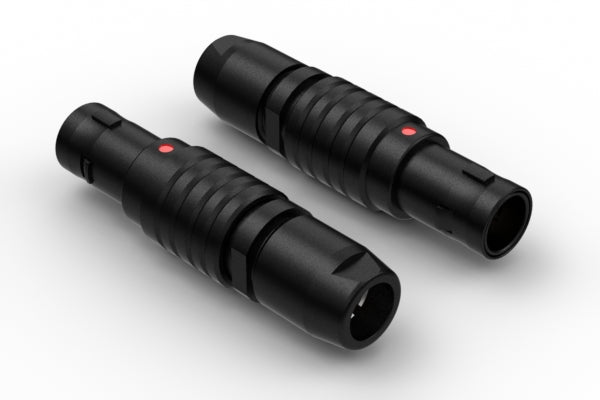

Connector, PPL7, 4C, 0° plug, 7x38 mm, black chrome, solder, Ø3.2-4.2 mm wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | push-pull |
| connector style | plug |
| # of connector contacts | 4 |
| connector center pin Ø | 0.7 mm |
| connector outer Ø | 7.0 mm |
| connector plating | gold |
| connector length | 38.0 mm |
| mounting style | cable mount |
| operating temperature | -50~220 °C |
| voltage rating | 300 V |
| current rating | 4.0 A |
| cycle rating | 5000 |
| connector 1 | 51-00016.42SR |
| Prop65 | Nickel |
