Description

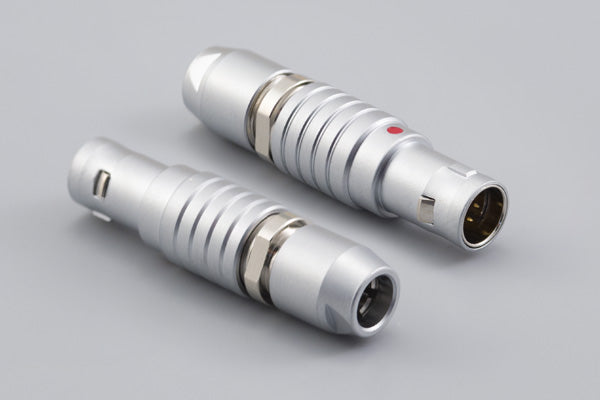

Connector, PPL7, 6C, 0° plug, 7x38 mm, chrome, solder, Ø4.2-5.2 mm wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | push-pull |
| connector style | plug |
| # of connector contacts | 6 |
| connector center pin Ø | 0.5 mm |
| connector outer Ø | 7.0 mm |
| connector plating | gold |
| connector length | 38.0 mm |
| mounting style | cable mount |
| operating temperature | -50~220 °C |
| voltage rating | 300 V |
| current rating | 2.0 A |
| cycle rating | 5000 |
| HTS code | 8536.69.4020 |
| unit weight | 9.06g |
| Prop65 | Nickel |
