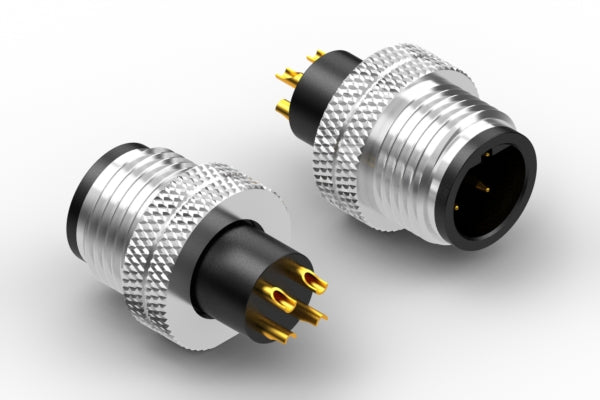

Connector, M12 B-code plug, 4 pin, 12xL22 mm, molding style, solder cup, gold plated, IP67
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | plug |
| connector orientation | 180° |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector outer Ø | 12.0 mm |
| connector plating | gold |
| connector coding | B |
| connector length | 22 mm |
| mounting style | cable mount |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 8.24g |
| Prop65 | Nickel |
