Description
Description

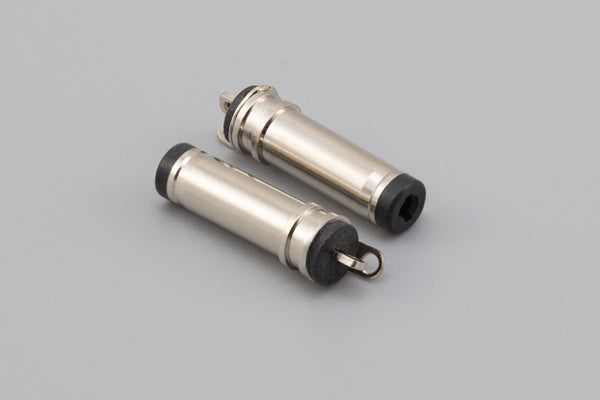

Connector, dc plug, 4.75x1.7x20 mm, dual solder tabs, spring contacts, nickel plated, 105 °C
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug |
| # of connector contacts | 2 |
| connector center pin Ø | 1.7 mm |
| connector outer Ø | 4.75 mm |
| connector plating | nickel |
| connector length | 20.0 mm |
| mounting style | cable mount |
| connector color | black |
| operating temperature | -25~105 °C |
| voltage rating | 48 V |
| current rating | 6.5 A |
| cycle rating | 5000 |
| HTS code | 8536.69.4010 |
| unit weight | 1.18g |
| Prop65 | Nickel |
PDF Spec
3D Model
Compliance
