Description

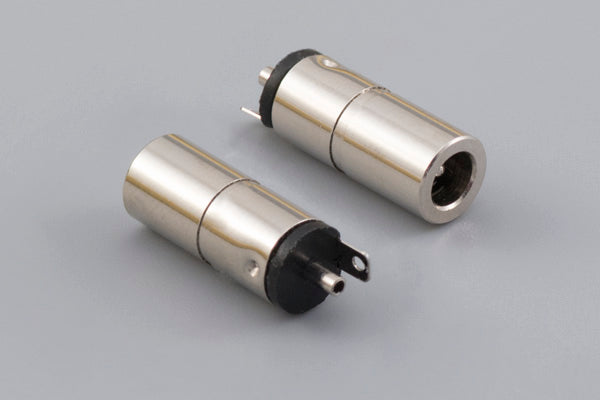

Connector, dc jack, 3.5x1.1xL16.5 mm, molding style
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 1.1 mm |
| connector outer Ø | 3.5 mm |
| connector plating | nickel |
| connector length | 16.5 mm |
| mounting style | cable mount |
| connector color | black |
| operating temperature | -25~70 °C |
| voltage rating | 24 V |
| current rating | 5.0 A |
| cycle rating | 5000 |
| HTS code | 8536.69.4010 |
| unit weight | 1.56g |
| Prop65 | Nickel |
