Description
Description

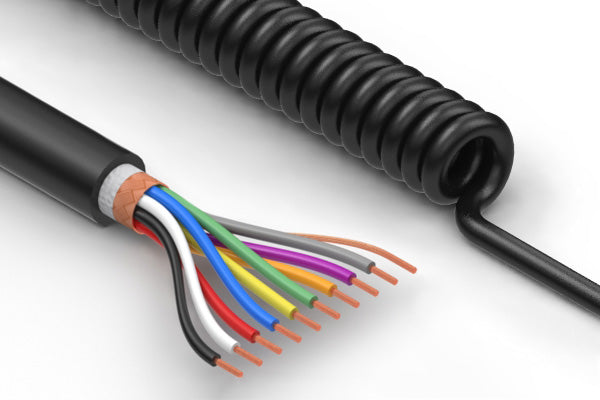

Coiled cable, 1115 mm, 9C blunt cut to same, 18 AWG, 9.0 mm, TPU, shielded, 30-00940 wire
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 9 |
| wire outer Ø | 9.0 mm |
| AWG | 18 |
| cable style | round |
| shield | braid |
| jacket material | TPU |
| bend radius | 54 mm |
| color | black |
| insulator color | white + black + red + yellow + blue + green + orange + purple + gray |
| cable length | 1115 mm |
| UL style | 20280 |
| features | coiled wire |
| wire part # | 30-00940 |
| HTS code | 8544.49.3080 |
PDF Spec
Compliance
