Description
Description

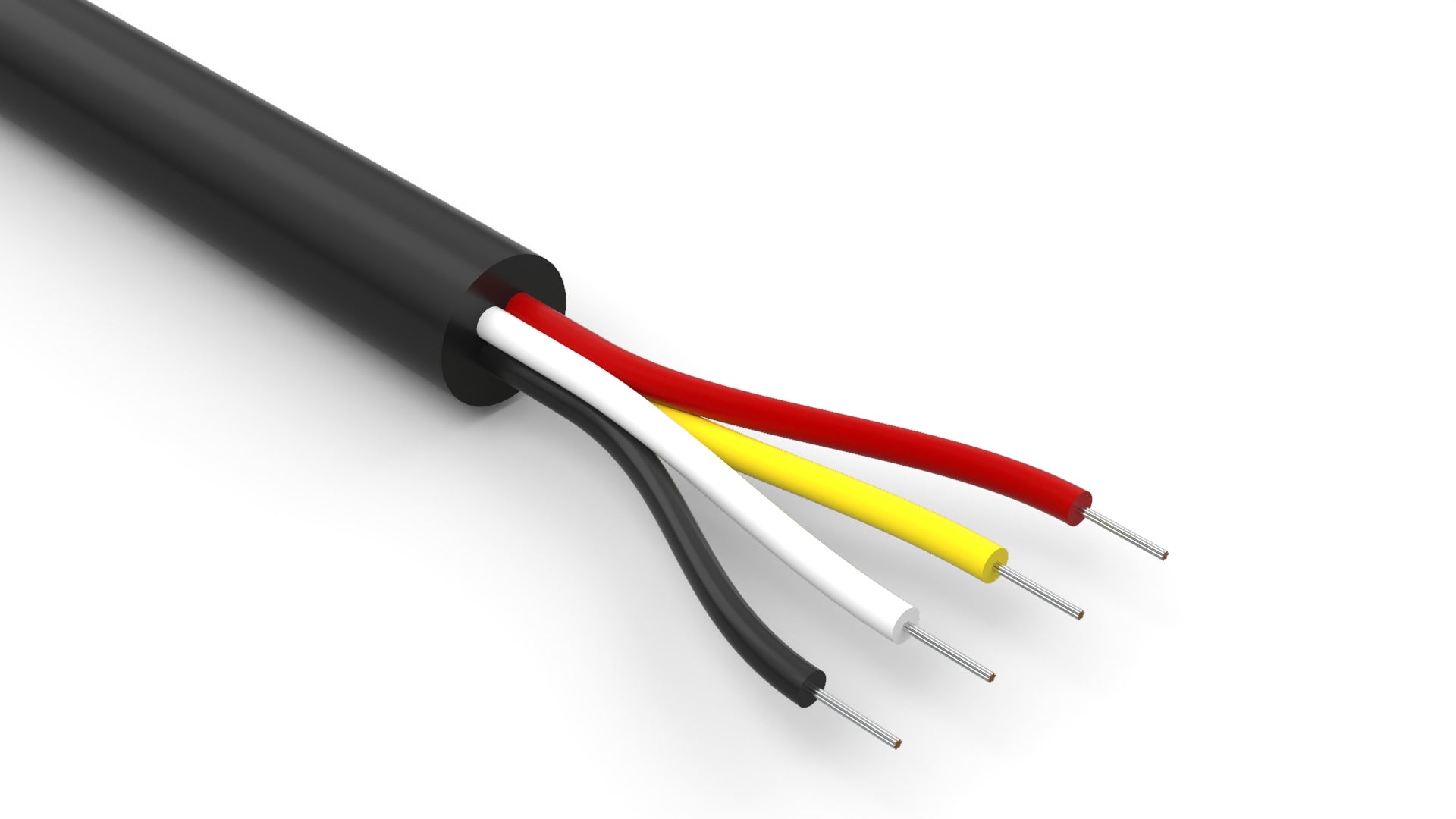

Wire, 4C TS, 32 AWG, UL2464, 300V, 80C, 3.5 mm, VW-1, PVC, black
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 4 |
| wire outer Ø | 3.5 mm |
| AWG | 32 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 42 |
| color | black |
| insulator color | black + red + white + yellow |
| operating temperature | -25 ~ 80 °C |
| voltage rating | 300 V |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
