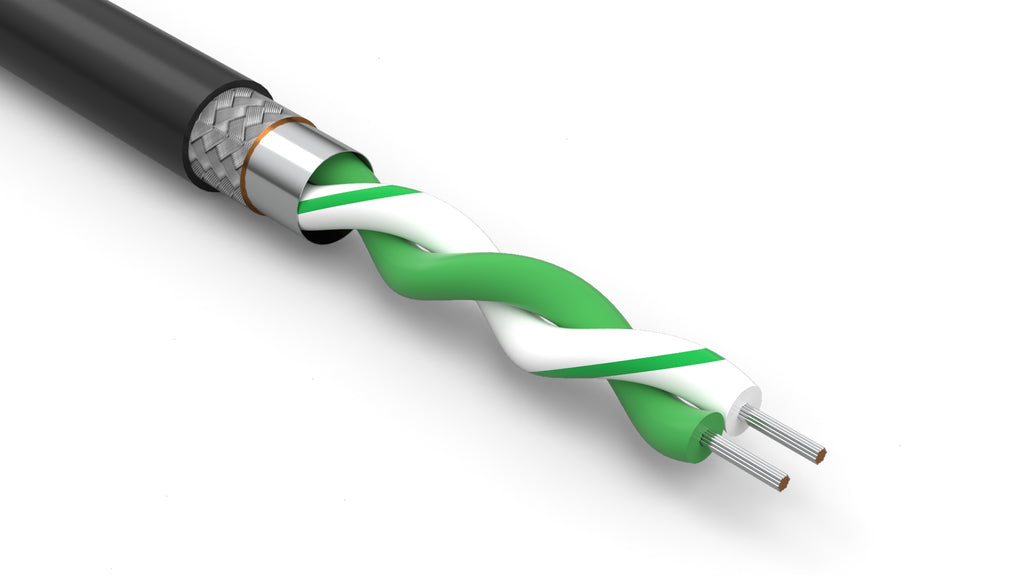

Wire, 2C, TS, 1PR 26 AWG, CMP, 300V, 75°C, 4.5 mm, shielded, PVC
Specifications
| Sale unit | By the spool (153 m / est. 500 ft) |
| Insulator color | green/white-green |
| Shield type | Braid |
| Bend radius | 67.5 mm |
| Number of conductors | 2 |
| Voltage rating | 300.0 V |
| Wire outer diameter | 4.5 mm |
| Wire gauge (AWG) | 26 |
| Cable style | round |
| Conductor insulation | FEP |
| Conductor material 1 | TS |
| Jacket color | Black |
| Jacket materials | PVC |
| Shield material | TS |
| UL style | CMP |
| Wire flammability | FT6 |
PDF specification
