30-03844

Sold by the spool (153 m / est. 500 ft).


All / Saleable / Wire

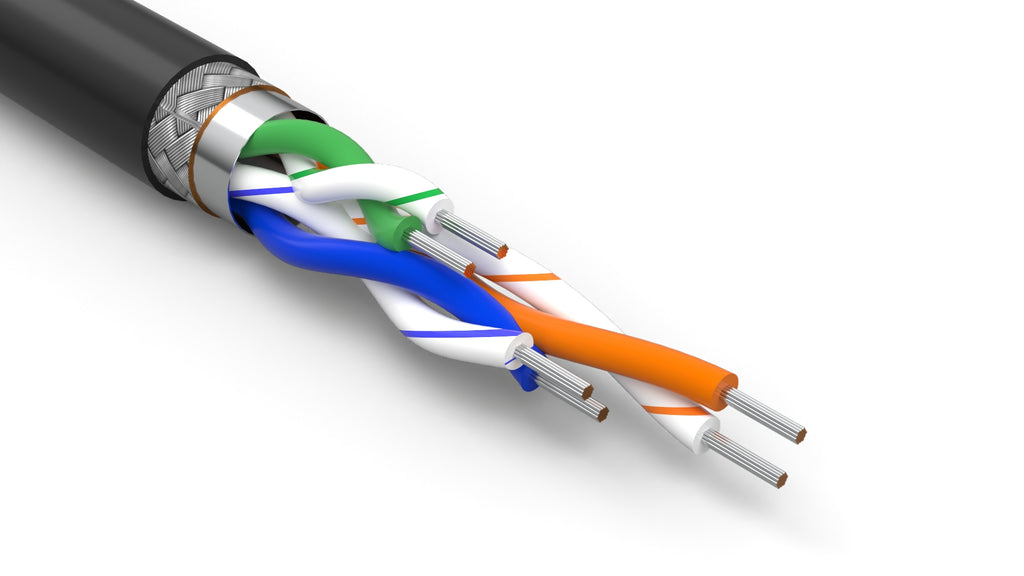

Wire, 6C, TS, 3PR 24 AWG, CMP, 300V, 75°C, 6.5 mm, shielded, PVC

Specifications

Sale unit By the spool (153 m / est. 500 ft)
Insulator color blue/white-blue, green/white-green, orange/white-orange
Shield type Braid
Bend radius 97.5 mm
Number of conductors 6
Voltage rating 300.0 V
Wire outer diameter 6.5 mm
Wire gauge (AWG) 24
Cable style round
Conductor insulation FEP
Conductor material 1 TS
Jacket color Black
Jacket materials PVC
Shield material TS
UL style CMP
Wire flammability FT6

PDF specification
