30-03842

Sold by the spool (153 m / est. 500 ft).


All / Saleable / Wire

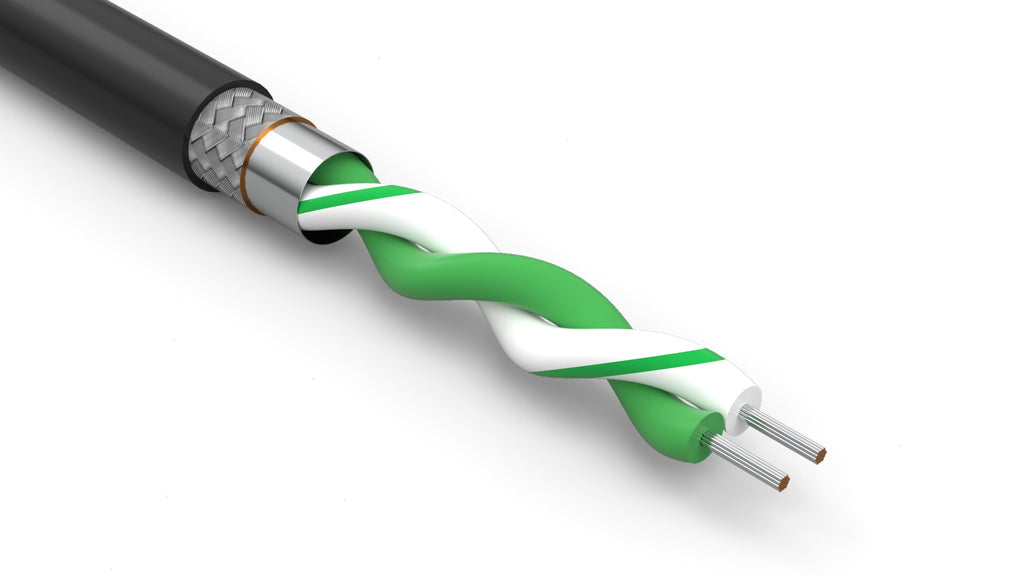

Wire, 2C, TS, 1PR 24 AWG, CMP, 300V, 75°C, 5.2 mm, shielded, PVC

Specifications

Sale unit By the spool (153 m / est. 500 ft)
Insulator color green/white-green
Shield type Braid
Bend radius 78.0 mm
Number of conductors 2
Voltage rating 300.0 V
Wire outer diameter 5.2 mm
Wire gauge (AWG) 24
Cable style round
Conductor insulation FEP
Conductor material 1 TS
Jacket color Black
Jacket materials PVC
Shield material TS
UL style CMP
Wire flammability FT6

PDF specification
