Description
Description

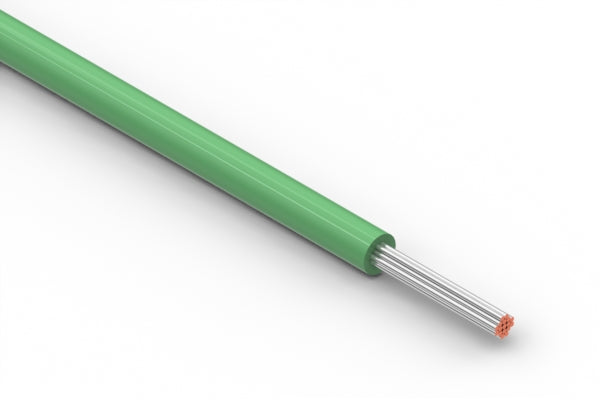

Wire, hook-up, TS, 26 AWG, UL1007, UL1569, 300V, 105C, 1.3 mm, VW-1, PVC, green
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 1 |
| wire outer Ø | 1.3 mm |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| bend radius | 5.2 |
| insulator color | green |
| operating temperature | -25~105 °C |
| voltage rating | 300 V |
| UL style | 1007/1569 |
| features | hook-up wire |
| HTS code | 8544.49.3080 |
| unit weight | 5.41g |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
