Description
Description

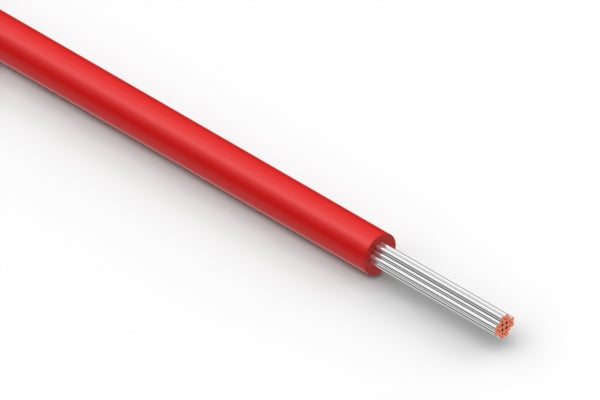

Wire, hook-up, TS, 16 AWG, UL1007, UL1569, 300V, 105C, 2.4 mm, VW-1, PVC, red
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 1 |
| wire outer Ø | 2.4 mm |
| AWG | 16 |
| cable style | round |
| shield | unshielded |
| bend radius | 9.6 |
| insulator color | red |
| operating temperature | -25~105 °C |
| voltage rating | 300 V |
| UL style | 1007/1569 |
| features | hook-up wire |
| HTS code | 8544.49.3080 |
| unit weight | 18.03g |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
