Description
Description

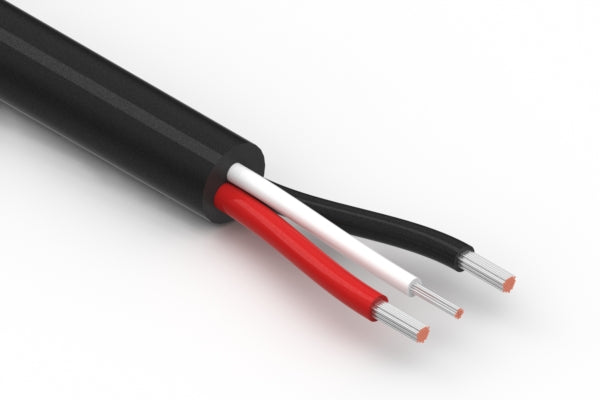

Wire, 2C TS 18 AWG + 1C TS 22 AWG, UL2464, 300V, 80C, 5.5 mm, VW-1, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| connector orientation | 180° |
| # of conductors | 3 |
| # of connector contacts | 3 |
| mounting style | panel mount |
| connector color | black |
| AWG | 18 |
| cable style | round |
| jacket material | PVC |
| color | black |
| insulator color | white + black + red |
| operating temperature | -20~80°C |
| voltage rating | 48 V |
| current rating | 8.0 A |
| cycle rating | 500 |
| UL style | 2464 |
| connector 1 | 54-00416 |
| connector 2 | blunt cut |
| wire part # | 30-03601 |
| HTS code | 8544.49.3080 |
| unit weight | 52.29g |
| Prop65 | Vinyl Chloride |
