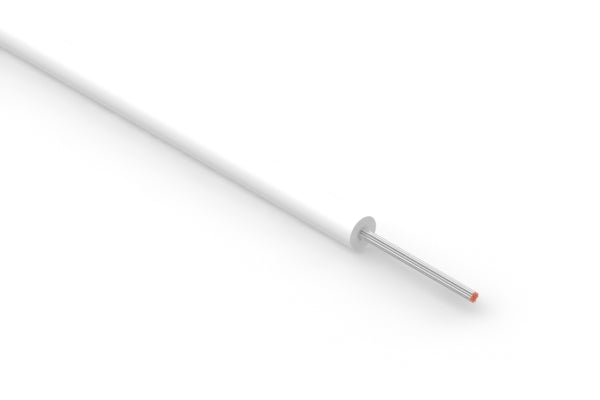

Wire, hook-up TS, 22 AWG, UL3530, 600V, 200C, 2.36 mm, FT2, Silicone, white
- Specifications
- PDF Spec
- Compliance
Specifications
| connector orientation | 180° |
| # of conductors | 1 |
| connector color | black |
| wire outer Ø | 2.4 mm |
| AWG | 22 |
| jacket material | SR |
| bend radius | 28.3 mm |
| color | white |
| insulator color | white |
| operating temperature | -60~200 °C |
| voltage rating | 600 V |
| UL style | 3530 |
| features | hook-up wire |
| HTS code | 8544.49.3080 |
| unit weight | 12.42g |
