Description
Description

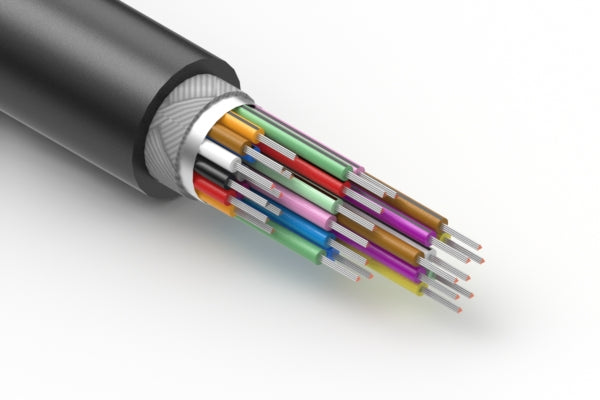

Wire, 25C, TS, 24 AWG, UL2464, cont flex, 300V, 80C, 9 mm, shielded, VW-1, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 25 |
| wire outer Ø | 9.0 mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| bend radius | 54 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple + gray + brown + pink + magenta + light green + light blue + white/black+10 |
| voltage rating | 300 V |
| cycle rating | 10000000 |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| unit weight | 21.15g |
| Prop65 | Vinyl Chloride |
