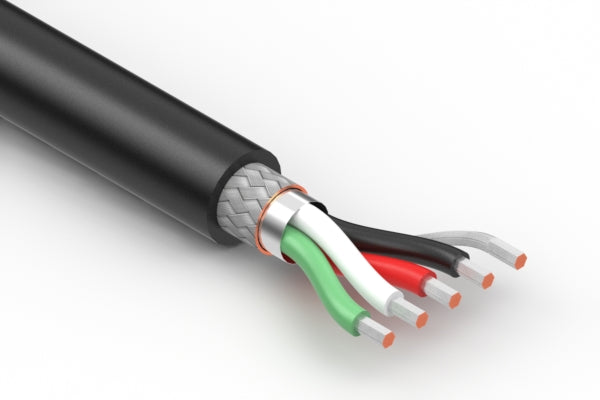

Wire, 4C, TS, 18 AWG, UL2464, cont flex, 300V, 80C, 6.8 mm, shielded, VW-1, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 4 |
| wire outer Ø | 6.8 mm |
| AWG | 18 |
| cable style | round |
| shield | braid + foil |
| bend radius | 40.8 mm |
| color | black |
| insulator color | white + black + red + green |
| voltage rating | 300 V |
| cycle rating | 10000000 |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| unit weight | 13.70g |
| Prop65 | Vinyl Chloride |
