Description
Description

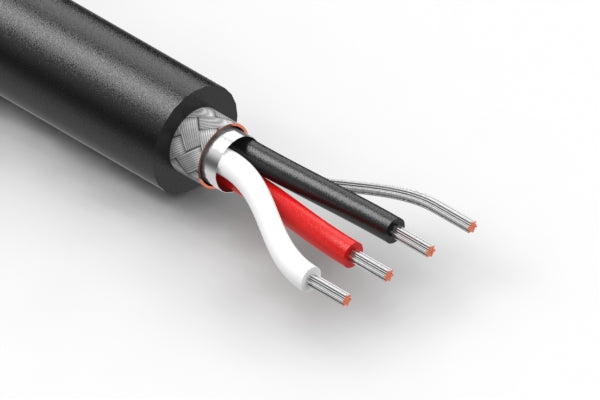

Wire, 3C, TS, 28 AWG, UL2464, cont flex, 300V, 80C, 4.1 mm, shielded, VW-1, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 4.1 mm |
| AWG | 28 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 24.6 mm |
| color | black |
| insulator color | white + black + red |
| operating temperature | -20~80 °C |
| voltage rating | 300 V |
| cycle rating | 10000000 |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| unit weight | 29.74g |
| Prop65 | Vinyl Chloride |
