Description
Description

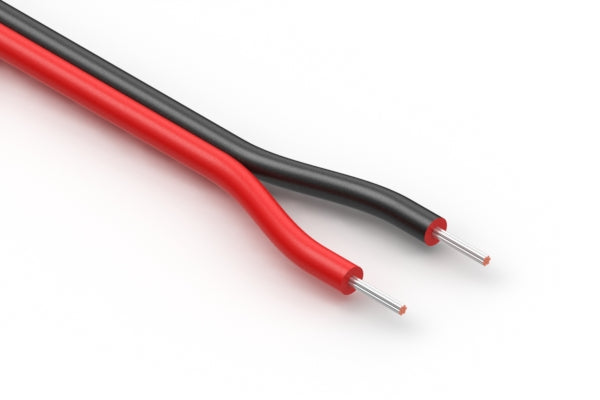

Wire, 2C TS, 26 AWG, UL21516, 600V, 105C, 2.6 mm, VW-1, mPPE, red and black
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 2 |
| wire outer Ø | 2.6 mm |
| AWG | 26 |
| cable style | flat |
| shield | unshielded |
| jacket material | mPPE |
| bend radius | 7.8 mm |
| color | red + black |
| operating temperature | -40~105 °C |
| voltage rating | 600 V |
| UL style | 21516 |
| features | phthalate and halogen free |
| HTS code | 8544.49.3080 |
| unit weight | 9.28g |
PDF Spec
Compliance
