Description
Description

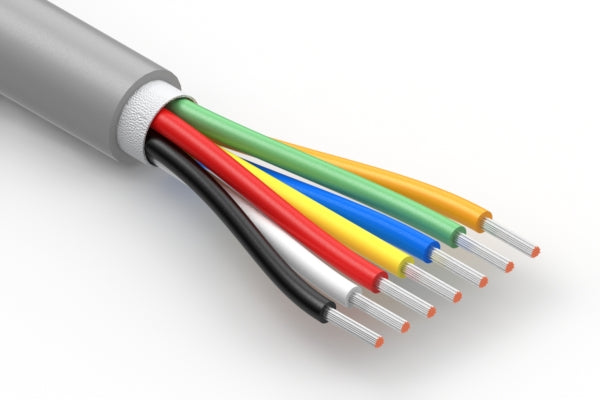

Wire, 7C TS, 28 AWG, 150V, 70C, 3.3 mm, TPU, 75A, gray, WBL
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 7 |
| wire outer Ø | 3.3 mm |
| AWG | 28 |
| cable style | round |
| shield | unshielded |
| jacket material | TPU |
| bend radius | 13.2 mm |
| color | Gray |
| insulator color | White, Black, Red, Yellow, Blue, Green, Orange |
| operating temperature | -40~70 °C |
| voltage rating | 150 V |
| UL style | (305, 'no') |
| features | biocompatible |
| HTS code | 8544.49.3080 |
