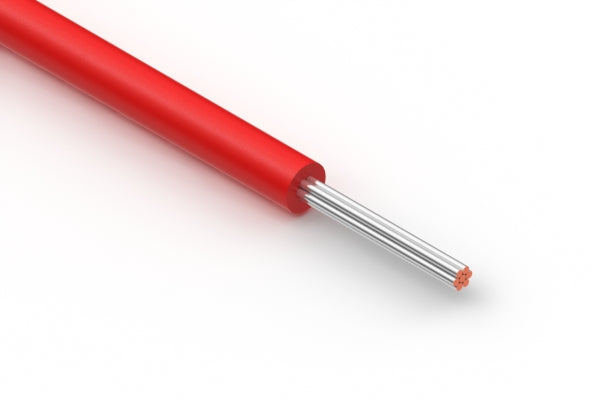

Wire, hook-up, TS, 24 AWG, UL1332, 300V, 200C, 1.26 mm, VW-1, FEP, red
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 1 |
| wire outer Ø | 1.3 mm |
| AWG | 24 |
| cable style | round |
| jacket material | FEP |
| bend radius | 7.6 mm |
| insulator color | red |
| operating temperature | -80~200 °C |
| voltage rating | 300 V |
| UL style | 1332 |
| features | hook-up wire |
| HTS code | 8544.49.3080 |
| unit weight | 6.98g |
