Description
Description

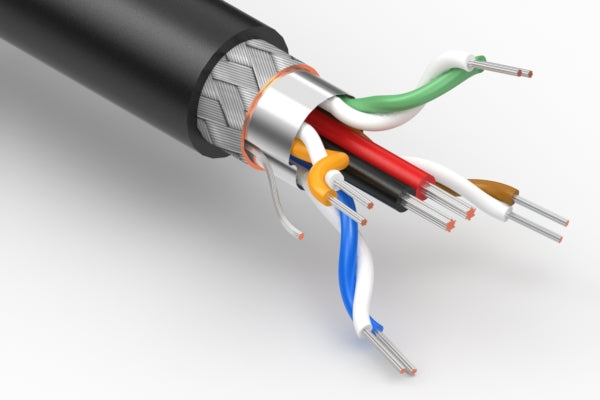

Wire, 4PR TS 24 AWG, 2C TS 20 AWG, UL2725, 30V, 80C, 7.8 mm, shielded, FT2, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 10 |
| wire outer Ø | 7.8 mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 46.8 mm |
| color | black |
| insulator color | white + black + red + blue + green + orange + purple + brown |
| cable length | 1000 mm |
| operating temperature | -25~80 °C |
| voltage rating | 30 V |
| UL style | 2725 |
| HTS code | 8544.49.2000 |
| unit weight | 92.55g |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
