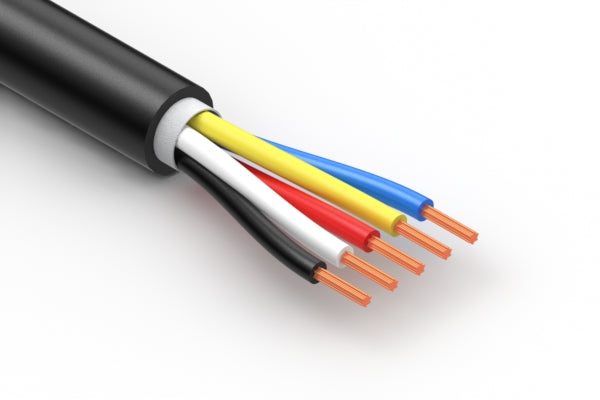

Wire, 5C BC, 22 AWG, UL20280, 300V, 80C, 5.2 mm, FT2, TPU
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 5 |
| wire outer Ø | 5.2 mm |
| AWG | 22 |
| cable style | round |
| shield | unshielded |
| jacket material | TPU |
| bend radius | 31.2 mm |
| color | black |
| insulator color | red + black + white + yellow + blue |
| operating temperature | -40~80 °C |
| voltage rating | 300 V |
| UL style | 20280 |
| HTS code | 8544.49.3080 |
