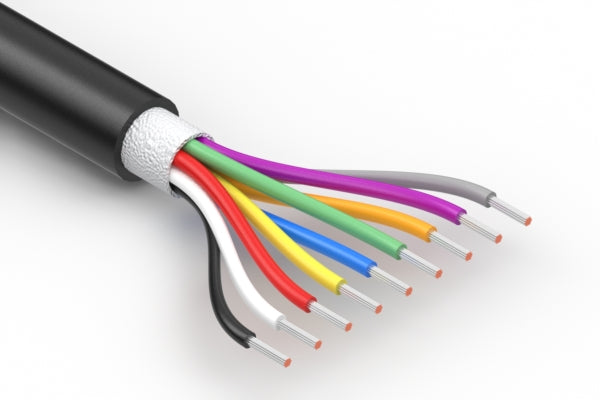

Wire, 9C TS, 22 AWG, 21509, 600V, 105C, 6.4 mm, FT2, mPPE
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 9 |
| wire outer Ø | 6.4 mm |
| AWG | 22 |
| cable style | round |
| shield | unshielded |
| bend radius | 38.4 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple + gray |
| voltage rating | 600 V |
| UL style | 21509 |
| features | phthalate and halogen free |
| HTS code | 8544.49.3080 |
| unit weight | 9.60g |
