Description
Description

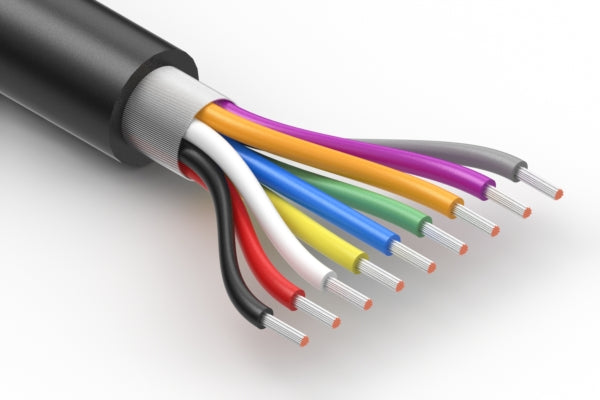

Wire, 9C TS, 22 AWG, 150V, 70C, 6.1 mm, shielded, TPU, 75A, WBL
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 9 |
| wire outer Ø | 6.1 mm |
| AWG | 22 |
| cable style | round |
| shield | spiral |
| jacket material | TPU |
| bend radius | 24.4 mm |
| color | black |
| insulator color | white + black + red + yellow + blue + green + orange + purple + gray |
| operating temperature | -40~70 °C |
| voltage rating | 150 V |
| UL style | no |
| features | bio-compatible |
| HTS code | 8544.49.3080 |
