Description
Description

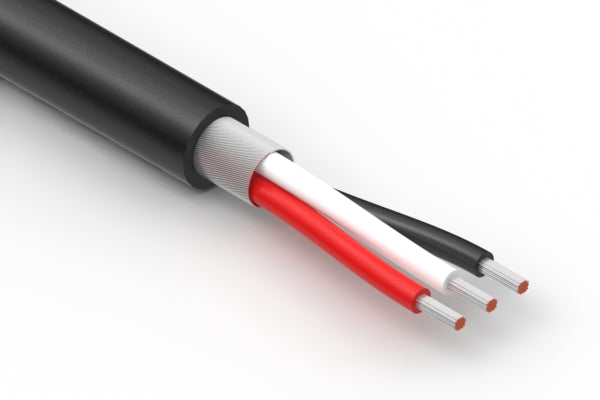

Wire, 3C TS, 20 AWG, 150V, 70C, 4.6 mm, shielded, TPU, 75A, WBL
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 4.6 mm |
| AWG | 20 |
| cable style | round |
| shield | Spiral |
| jacket material | TPU |
| bend radius | 18.4 mm |
| color | black |
| insulator color | white + black + red |
| operating temperature | -40~70 °C |
| voltage rating | 150 V |
| UL style | no |
| features | bio-compatible |
| HTS code | 8544.49.3080 |
| unit weight | 37.65g |
