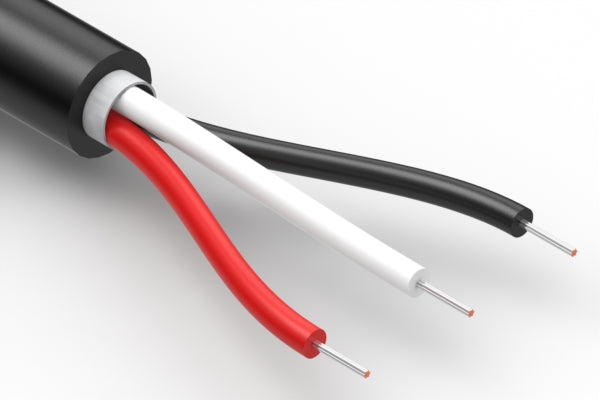

Wire, 3C TS, 30 AWG, UL20387, 300V, 105C, 60C oil, UV, 4.1 mm, VW-1, PVC, 80A, black
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 4.1 mm |
| AWG | 30 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 24.6 mm |
| color | black |
| insulator color | white + black + red |
| operating temperature | -40~105 °C |
| voltage rating | 300 V |
| UL style | 20387 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
