Description
Description

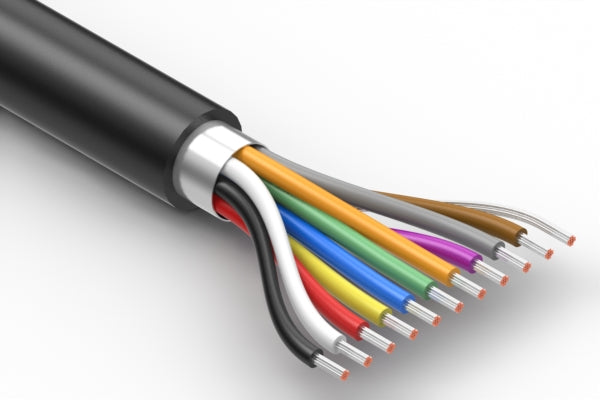

Wire, 10C TS, 26 AWG, 21509, 600V, 105C, 5.7 mm, shielded, FT2, mPPE
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 10 |
| wire outer Ø | 5.7 mm |
| AWG | 26 |
| cable style | round |
| shield | Foil |
| jacket material | mPPE |
| bend radius | 34.2 mm |
| color | black |
| insulator color | white + black + red + yellow + blue + green + orange + purple + gray + brown |
| operating temperature | -40~105 °C |
| voltage rating | 600 V |
| UL style | 21509 |
| HTS code | 8544.49.3080 |
| unit weight | 43.79g |
