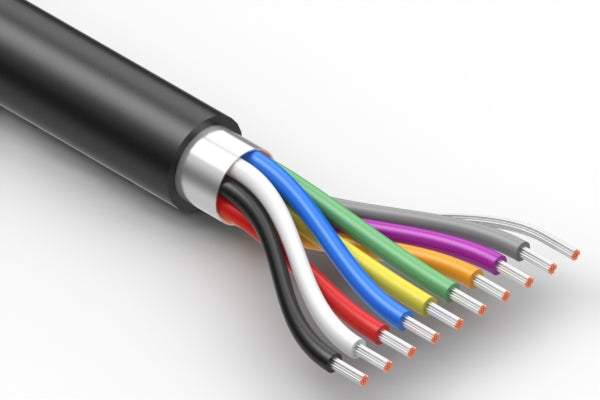

Wire, 9C TS, 20 AWG, 21509, 600V, 105C, 7.2 mm, shielded, FT2, mPPE
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 9 |
| wire outer Ø | 7.2 mm |
| AWG | 20 |
| cable style | round |
| shield | foil |
| jacket material | mPPE |
| bend radius | 43.2 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple + gray |
| operating temperature | -40~105 °C |
| voltage rating | 600 V |
| UL style | 21509 |
| HTS code | 8544.49.3080 |
| unit weight | 189.54g |
