Description
Description

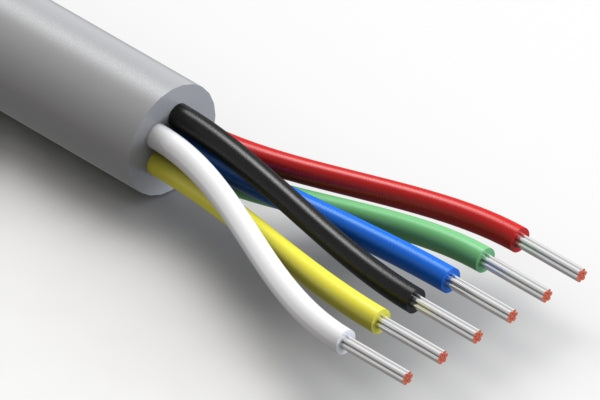

Wire, 6C TS, 18 AWG, UL2464, 300V, 80C, 7.1 mm, VW-1, PVC, 60P, gray
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 6 |
| wire outer Ø | 7.1 mm |
| AWG | 18 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 42.6 mm |
| color | gray |
| insulator color | red + black + white + yellow + blue + green |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
