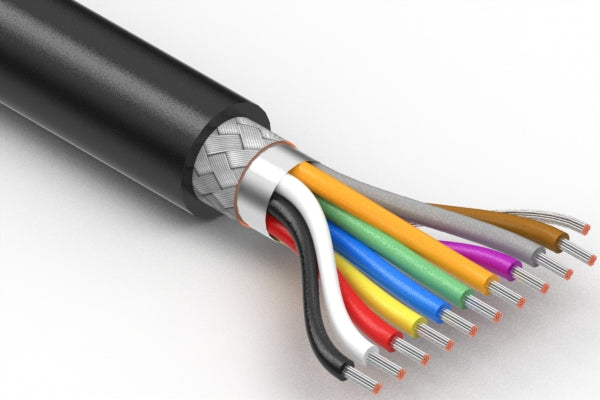

Wire, 10C TS, 26 AWG, UL2464, 300V, 80C, 6.7 mm, shielded, VW-1, PVC, black
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 10 |
| wire outer Ø | 6.7 mm |
| AWG | 26 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 40.2 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple + gray + brown |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| unit weight | 75.16g |
| Prop65 | Vinyl Chloride |
