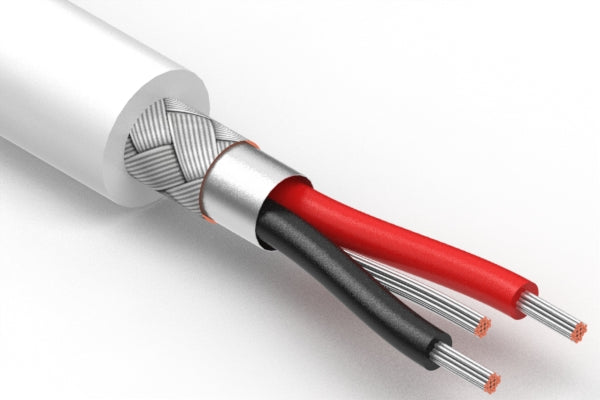

Wire, 2C TS, 26 AWG, UL2464, 300V, 80C, 4.5 mm, shielded, VW-1, PVC, white
Compliance
Compliance Documentation
PDF Spec
PDF Spec
Specifications
| # of conductors | 2 |
| wire outer Ø | 4.5 mm |
| AWG | 26 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 27 mm |
| color | white |
| insulator color | red + black |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
