Description
Description

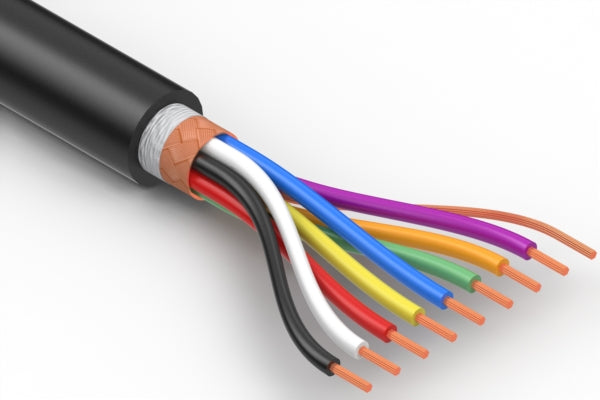

Wire, 8C BC, 24 AWG, UL20280, 300V, 80C, 6.0 mm, braided shield, FT2, TPU
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 8 |
| wire outer Ø | 5.7 mm |
| AWG | 24 |
| cable style | round |
| shield | braid |
| jacket material | TPU |
| bend radius | 34.2 mm |
| color | black |
| insulator color | white + black + red + yellow + blue + green + orange + purple |
| operating temperature | -40~80 °C |
| voltage rating | 300 V |
| UL style | 20280 |
| HTS code | 8544.49.3080 |
| unit weight | 57.78g |
