Description
Description

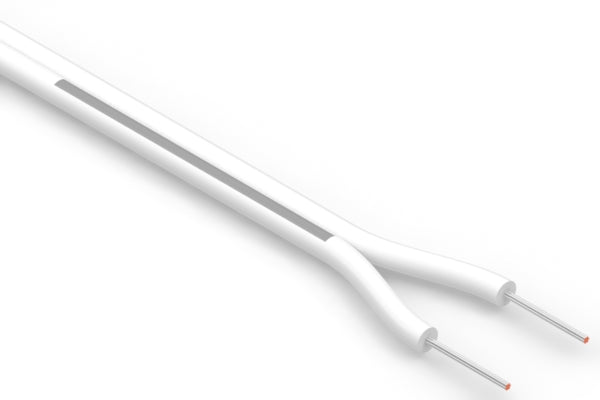

Wire, 2C TS, 28 AWG, UL2651, 300V, 105C, 2.5 mm, VW-1, PVC, 38P, white
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 2 |
| wire outer Ø | 2.5 mm |
| AWG | 28 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 7.5 mm |
| color | white |
| operating temperature | -25~105 °C |
| voltage rating | 300 V |
| UL style | 2651 |
| HTS code | 8544.49.3080 |
| unit weight | 0.00g |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
