Description
Description

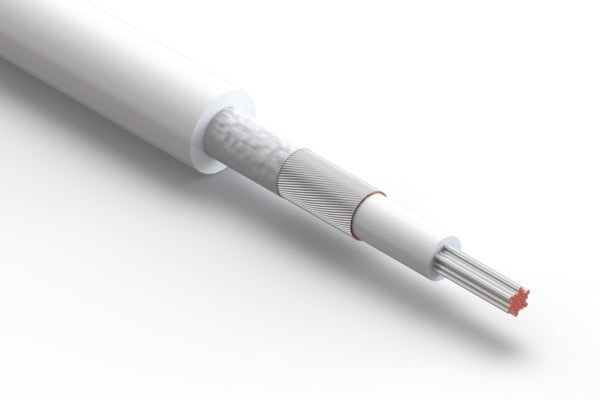

Wire, 1C TS, 18 AWG, UL10846, 300V, 80C, 4.0 mm, shielded, VW-1, TPU, white
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 1 |
| wire outer Ø | 4.0 mm |
| AWG | 18 |
| cable style | round |
| shield | spiral |
| jacket material | TPU |
| bend radius | 24 mm |
| color | white |
| insulator color | white |
| operating temperature | -40~80 °C |
| voltage rating | 300 V |
| UL style | 10846 |
| HTS code | 8544.49.3080 |
| unit weight | 0.00g |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
