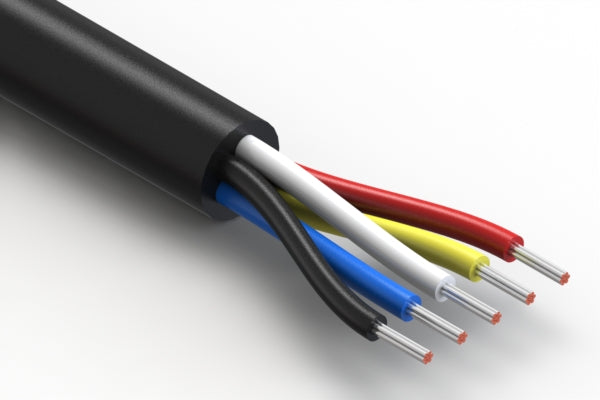

Wire, 5C TS, 28 AWG, UL2464, 300V, 80C, 4.2 mm, VW-1, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 5 |
| wire outer Ø | 4.0 mm |
| AWG | 28 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 24 mm |
| color | black |
| insulator color | white + black + red + yellow + blue |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| unit weight | 27.06g |
| Prop65 | Vinyl Chloride |
