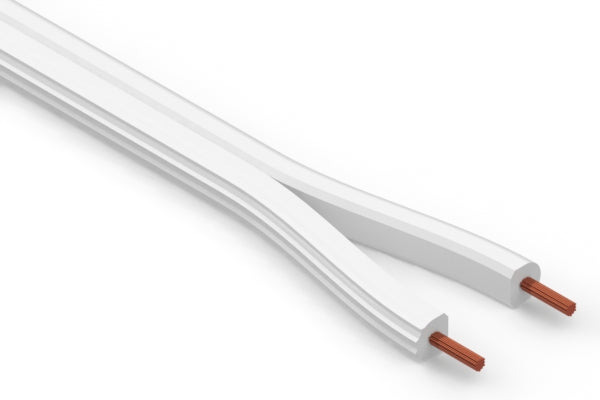

Wire, 2C, 18 AWG, UL SPT-2, 300V, 105C, 7.05 mm, VW-1, PVC, white
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 2 |
| wire outer Ø | 7.1 mm |
| AWG | 18 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 42.3 mm |
| color | white |
| operating temperature | -10~105 °C |
| voltage rating | 300 V |
| UL style | SPT2 |
| HTS code | 8544.49.3080 |
| unit weight | 0.00g |
| Prop65 | Vinyl Chloride |
