Description
Description

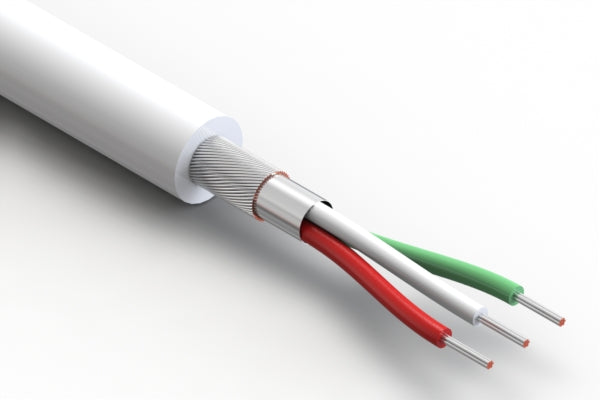

Wire, 3C, 28 AWG, 3.8 mm, PU, 300V, 80C, shielded, coil cord applications, white
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 3.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral |
| jacket material | PU |
| bend radius | 22.8 mm |
| color | white |
| insulator color | white + red + green |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| HTS code | 8544.49.3080 |
| unit weight | 0.00g |
