Description
Description

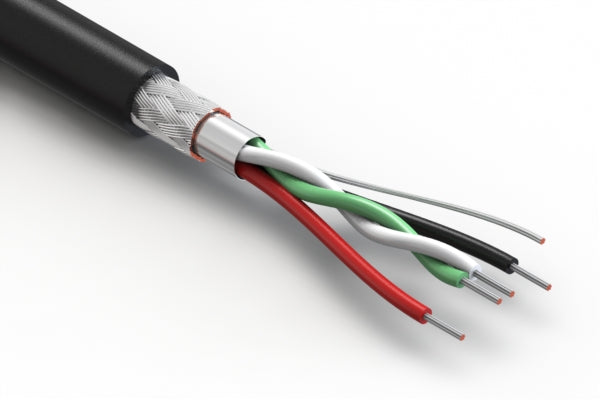

Wire, 4C, 1PR + 2C, 28 AWG, UL2725, 30V, 80C, 3.6 mm, shielded, VW-1, PVC, 79A, USB 2.0
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 4 |
| wire outer Ø | 3.8 mm |
| AWG | 28 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 22.8 mm |
| color | black |
| insulator color | white + black + red + green |
| cable length | 1000 mm |
| operating temperature | -10~80 °C |
| voltage rating | 30 V |
| UL style | 2725 |
| HTS code | 8544.49.2000 |
| unit weight | 26.14g |
| Prop65 | Vinyl Chloride |
