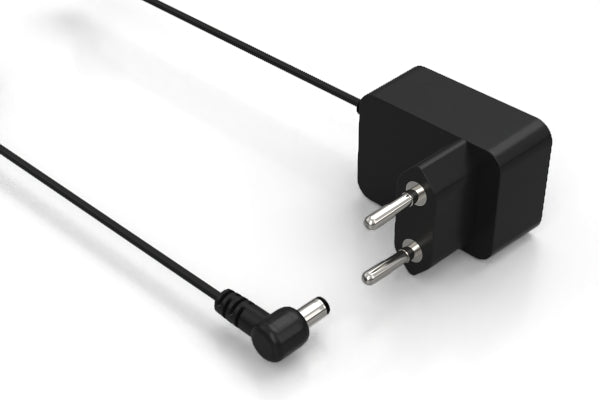

Adapter, WP, 240V, EU, 2P, 12V, 1500mA, 5.5x2.5x9.5 mm 90° plug, 10-03166 cable, C+, Level VI
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug |
| connector orientation | 90° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| mounting style | cable mount |
| connector color | black |
| AWG | 22 |
| cable style | round |
| shield | Spiral |
| jacket material | PVC |
| bend radius | 18 mm |
| color | black |
| insulator color | white |
| cable length | 1500 mm |
| operating temperature | -25~80 °C |
| voltage rating | 12 V |
| current rating | 1500 mA |
| UL style | 1185 |
| connector 1 | 50-00129 |
| wire part # | 30-00341 |
| HTS code | 8504.40.9510 |
| Prop65 | Vinyl Chloride |
