Description

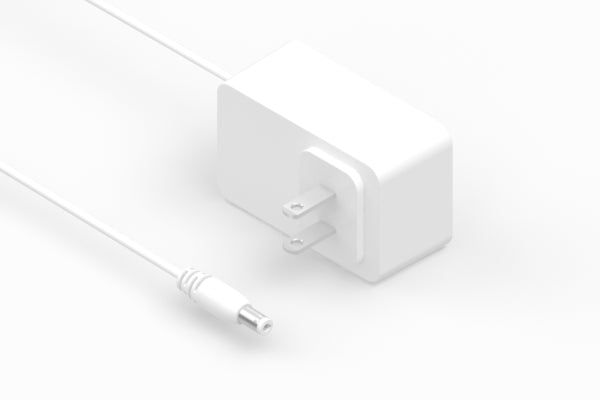

Adapter, WP, 120V, US, 2P, 24V 1000 mA, 5.5x2.5x9.5 mm plug, 10-05974 cable, C+, Level VI, white
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector orientation | 180° |
| # of conductors | 1 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector length | 9.5 mm |
| connector color | white |
| wire outer Ø | 2.6 mm |
| AWG | 24 |
| cable style | round |
| shield | spiral |
| jacket material | PVC |
| bend radius | 15.6 mm |
| color | white |
| insulator color | white |
| cable length | 1500 mm |
| voltage rating | 24 V |
| current rating | 1000 mA |
| UL style | 1185 |
| connector 1 | 50-00314 |
| wire part # | 30-01552 |
| HTS code | 8504.40.9510 |
| Prop65 | Nickel |
