Description

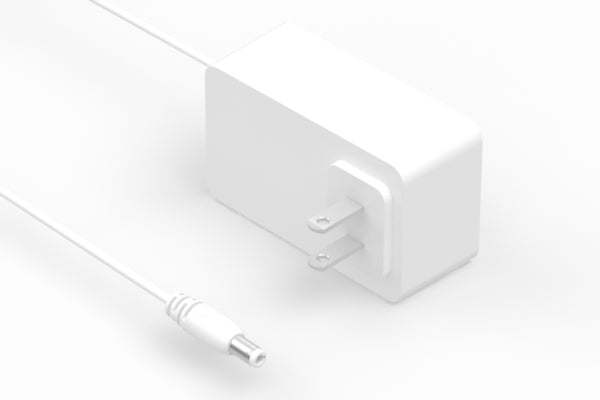

Adapter, WP, 120V, US, 2P, 12V 3000 mA, 5.5x2.5x9.5 mm plug, 10-06051 cable, C+, Level VI, white
| connector orientation | 180° |
| # of conductors | 1 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector length | 9.5 mm |
| connector color | white |
| wire outer Ø | 2.95 |
| AWG | 20 |
| cable style | round |
| shield | spiral |
| jacket material | PVC |
| bend radius | 17.7 mm |
| color | white |
| insulator color | white |
| cable length | 1500 mm |
| voltage rating | 12 V |
| current rating | 3000 mA |
| UL style | 1185 |
| connector 1 | 50-00314 |
| wire part # | 30-01550 |
| HTS code | 8504.40.9510 |
| Prop65 | Nickel |
