Description
Description

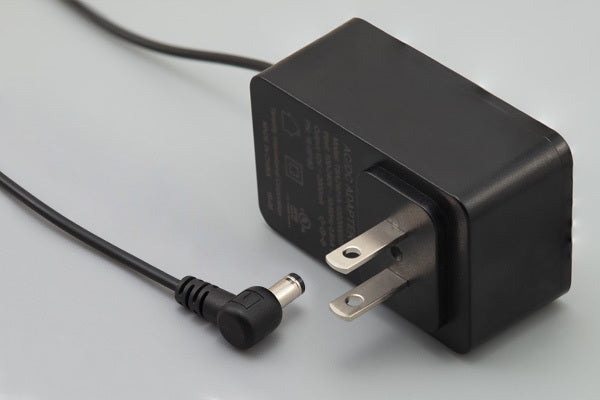

Adapter, WP, 120V, US, 2P, 15V 2400 mA, 5.5x2.1x9.5 mm 90° plug, 10-03776 cable, C+, Level VI
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector orientation | 90° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 9.5 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 3.0 mm |
| AWG | 20 |
| cable style | round |
| shield | spiral |
| jacket material | PVC |
| bend radius | 17.7 mm |
| color | black |
| insulator color | white |
| cable length | 1500 mm |
| operating temperature | 0~40 °C |
| voltage rating | 15 V |
| current rating | 2400 mA |
| UL style | 1185 |
| connector 1 | 50-00133 |
| wire part # | 30-00338 |
| HTS code | 8504.40.9510 |
| unit weight | 166.67g |
| Prop65 | Vinyl Chloride |
