Price:
Sale price$0.00

Description

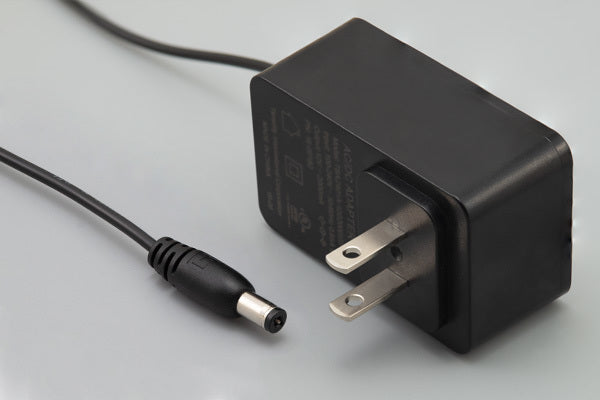

Adapter, WP, 120V, US, 2P, 15V 2400 mA, 5.5x2.5x9.5 mm plug, 10-03777 cable, C+, Level VI

connector type dc
connector orientation 180°
# of conductors 1
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
connector plating nickel
connector length 9.5 mm
mounting style cable mount
connector color black
wire outer Ø 2.95 mm
AWG 20
cable style round
shield spiral
jacket material PVC
bend radius 17.7 mm
color black
insulator color white
cable length 1500 mm
operating temperature 0~40 °C
voltage rating 15 V
current rating 2400 mA
UL style 1185
connector 1 50-00129
wire part # 30-00338
HTS code 8504.40.9510
unit weight 175.00g
Prop65 Vinyl Chloride
