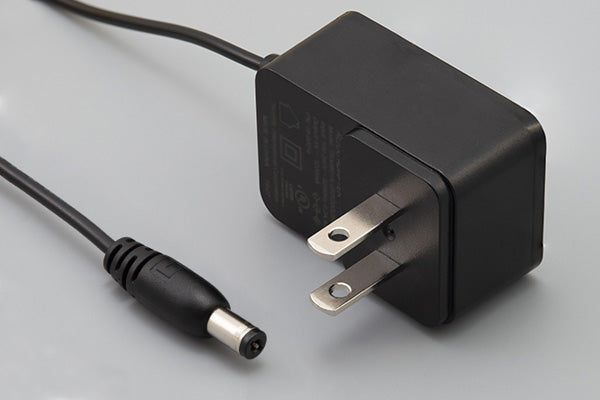

Adapter, WP, 120V, US, 2P, 12V 500 mA, 5.5x2.5x9.5 mm plug, 10-03173 cable, C+, Level VI
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → plug |
| connector orientation | 180° |
| connector center pin Ø | 2.5 mm |
| connector length | 9.5 mm |
| wire outer Ø | 2.6 mm |
| AWG | 24 |
| cable style | round |
| bend radius | 15.6 mm |
| color | black |
| cable length | 1500 mm |
| voltage rating | 12 V |
| current rating | 500 mA |
| UL style | 1185 |
| connector 1 | 50-00129 |
| wire part # | 30-00344 |
| HTS code | 8504.40.9510 |
| unit weight | 77.50g |
| Prop65 | Vinyl Chloride |
