Description
Description

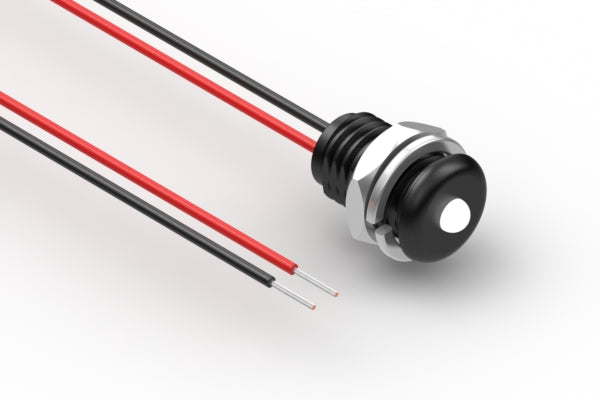

Cable, 150 mm, white LED 57-00005 to 5 mm tinned, 5-30 V, panel mount, 26 AWG, UL11028, IP68
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| mounting style | panel mount |
| wire outer Ø | 1.0 mm |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| bend radius | 6 mm |
| insulator color | red + black |
| cable length | 150 mm |
| operating temperature | -40~80 °C |
| voltage rating | 5~30 V |
| current rating | 0.20 A |
| UL style | 11028 |
| features | waterproof |
| connector 1 | 57-00005 |
| connector 2 | stripped and tinned |
| wire part # | 30-01772 |
| HTS code | 8541.41.0000 |
| Prop65 | Nickel |
